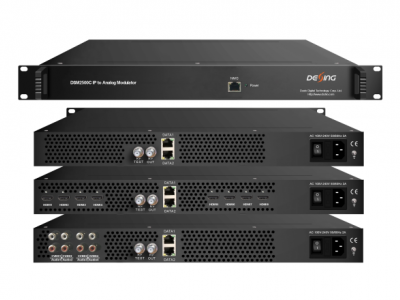

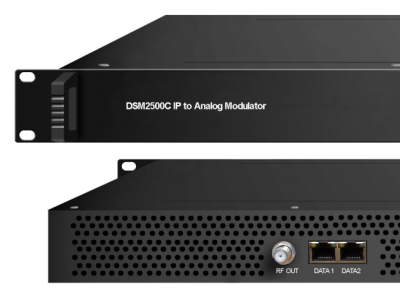

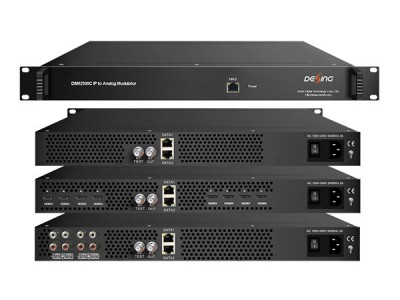

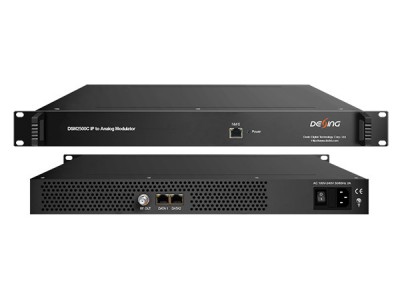

ip to analog modulator

区域: 四川成都市

总量

期限: 自买家付款之日起 3 天内发货

参数: 品牌德芯32 in 132 channelsip convert analogmodulator

成都德芯数字科技股份有限公司

成都德芯数字科技股份有限公司

进店

店铺主推
最新发布

产品详情

ip to analog modulator

* 2 GE ports (max 64 IP input over MPTS/SPTS), Max 840Mbps for each GE input

* Support HEVC/H.265, H.264/AVC, MPEG-2 TS Decapsulation

* Processing of up to 32 IP multicast groups of a Gigabit Ethernet MPEG TS into up to 32 standard PAL or NTSC or SECAM TV programs (SECAM is under development)

* 32 non-adjacent and adjacent carriers output within 400MHz

* high density

* Support Web-based Network management

Specifications

Input	Interface/rate	2 GE ports (max 64 IP input) Max 840Mbps for each GE input
	Stream	UDP, UDP / RTP, 1-7 packets, FEC, SPTS, MPTS
	Transport Protocol	UDP/RTP, unicast and multicast, IGMP V2/V3
	Packet Length	188 / 204 Bytes
Decoding Parameters	Video	HEVC/H.265, H.264/AVC Level 4.1 HP, MPEG-2 MP@HL
	Audio	MPEG-1/2 Layer 1/2, (HE-)AAC,AC3
	Data	Teletext, Teletext subtitles, DVB Subtitling
	Resolutions	HEVC/H.265: 1080@60P,1080@60I,1080@50P,1080@50I,720@60P,720@50P H.264/AVC: 1080@60I,1080@50P,1080@50I,1080@30P,1080@25P , 720@60P,720@50P,576@50I,480@60I MPEG2: 1080@60I,1080@50I, 720@60P,720@50P,576@50I,480@60I
	Aspect ratio	4:3/16:9
Modulation Parameters	Number of channels	up to 32
	Connectors	75Ω, F-jack
	Frequency range	47 – 862MHz, digital modulation process
	Output Bandwidth	400MHz
	Output level	maximum 112dBμV
	Return loss	≥ 14dB
	Spurious frequency dist.	≥ 60dB
	Stereo cross talk	> 55dB
	Residual carrier accuracy	1%
	TV standard	PAL B/G/D/K/M/N, NTSC M/J/4.43, SECAM (under development)
	Video-signal to noise ratio	≥ 60dB
Network Interface	Management	1 x 100 base-T Ethernet (RJ 45)
	Data	2 x 1000 base-T Ethernet (RJ 45)
	Protocol	IEEE802.3 Ethernet, RTP, ARP, IPv4, TCP/UDP, HTTP, IGMPv2/v3
Others	Image resolution	up to 1080i
	CNR	60 dB (after internal combining)
	SNR	> 53 dB (after internal combining)
	Sampling frequency	48, 44.1, 32
	Output volume adjustment	0 - 100 %
General	Demission	420mm×440mm×44.5mm (WxLxH)
	Temperature	0~45℃(operation), -20~80℃(storage)
	Power Supply	AC100V±10%, 50/60Hz or AC 220V±10%,50/60Hz

The factory default IP address is 192.168.0.136 and users can connect the device and web NMS through this IP address.

Connect the PC (Personal Computer) browser and the device with a net cable, and use ping command to confirm they are on the same network segment. For instance, the PC IP address is 192.168.99.252, we then change the device IP to 192.168.99.xxx (xxx can be 0 to 255 except 252 to avoid IP conflict).

Launch the web browser an input the device IP address in the browser’s address bar and press Enter.

It displays the Login interface as Figure-1. Input the Username and Password (Both the default Username and Password are “admin”. And then click “Login” to start the device setting.
